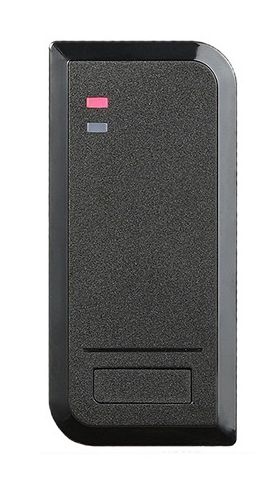

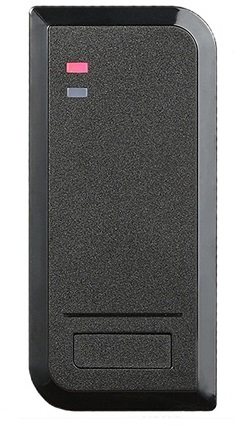

RFID card reader with integrated controller, Mifare, IP66 Features: It is a compact, simply designed, standalone access control system that provides proximity entry. The RFID access control controller is easily programmable by remote control (add/delete card). Suitable for extreme weather conditions -40°C~+60°C, IP66 water and dust resistant, suitable for outdoor or indoor use. Built-in anti-tamper. Remote control as well as Master Add Card and Master Delete Card are included. Technical data: Number of users (cards): 1.000. Operating frequency: 13.56MHz MF. Operating voltage: DC 9~24 V. Current: <40 mA. Card reader: Mifare. Card reading distance: 3~6 cm. Number of supported doors: 1. Relay: 1 (for lock, No, Nc, Com contacts). Adjustable Relay Output Time: 0-99 seconds (5 seconds default). Safety class: IP66. Mounting: wall mount. Material: ABS shell. Operating temperature: -40°C~+60°C. Relative humidity: 20%~98%RH. Dimensions: 103 x 48 x 20 mm. Weight: 100g. Warranty: 24 months. ![]() ![]() |
