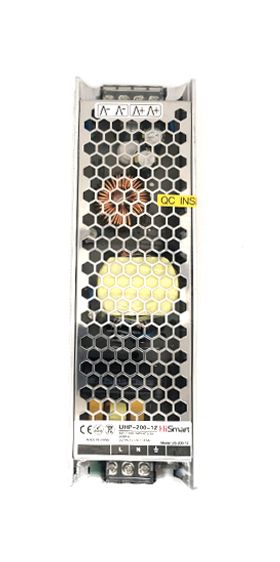

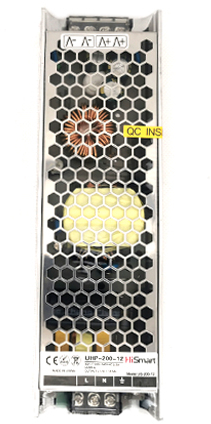

Sākums/Baterijas, akumumulatori, barošanas bloki/Barošanas bloki/12V/Hismart Power supply 12V, 16.5A, 200W
| Power supply 12V, 16.5A, 200W. Features: Slim type built-in switching power supply operating in pulse mode. Small volume, low weight, high efficiency. Cooling by free air convection. Protections: short circuit / overload. No load consumption: <1.0W. Specifications: Type: switching power supply. Input range AC: 180-264V. Frequency 47-63Hz. Output voltage DC: 12V. DC voltage adjustable range: ±10%. Rated current: 16.5A. Rated power: 198W. AC current: 2.5A / 230V. Ripple and noise: 180mV p-p. Effieciency: 87%. Leakage current: <2mA / 240V AC. MBTF: min 230000 hours. Working temperature: -20°C~+50°C. Working humidity: 20%-90%RH. Dimension: 210x62x31mm. Weight: 0.4kg. Warranty: 24 months. |
Zīmols:
HISMART
